    15m Length Brickwork Reinforcement Mesh Galvanized Anti Cracking 10cm Width

    Ask Lasest Price
    Brand Name : XINGTAI
    Model Number : XTBRS380
    Supply Ability : 5000M2/DAY
    Delivery Time : 15-20
    • Product Details
    • Company Profile

    15m Length Brickwork Reinforcement Mesh Galvanized Anti Cracking 10cm Width

    15m Length Brickwork Reinforcement Mesh Galvanized Anti Cracking 10cm Width


    Brick Reinforcement Mesh for use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. We can produce the width :10cm,15cm,20cm,25cm,30cm.Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.


    Specification:

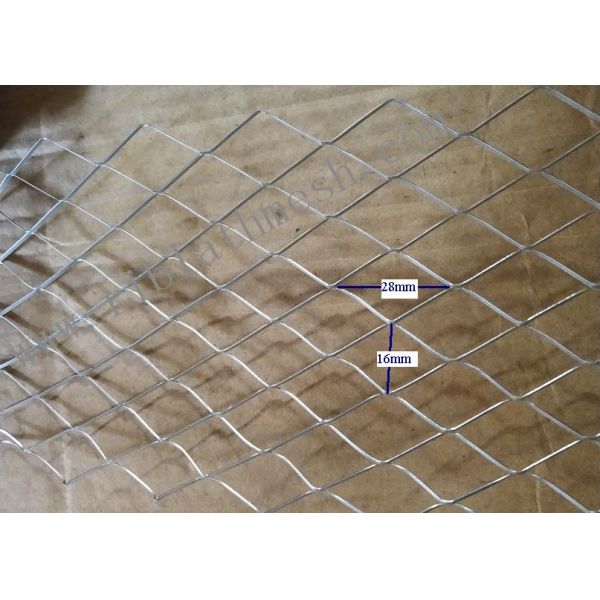

    Hole Type: Diamond

    Hole Size: 16*28mm Llike the photo

    width: 10cm, 15cm, 20cm,30cm

    Length: 10m-100m

    Hole TypeHole SizeWidthLength
    Diamond16*28mm10cm-30cm10-100m

    How to Install Brickwork Reinforcement Mesh:

    The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

    The reinforcement is then simply embedded in the mortar for the next course.

    In most instances, application every third course, for the full length of the wall, will be sufficient.

    To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

    Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

    Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .



    Quality 15m Length Brickwork Reinforcement Mesh Galvanized Anti Cracking 10cm Width for sale
